NVIDIA2020

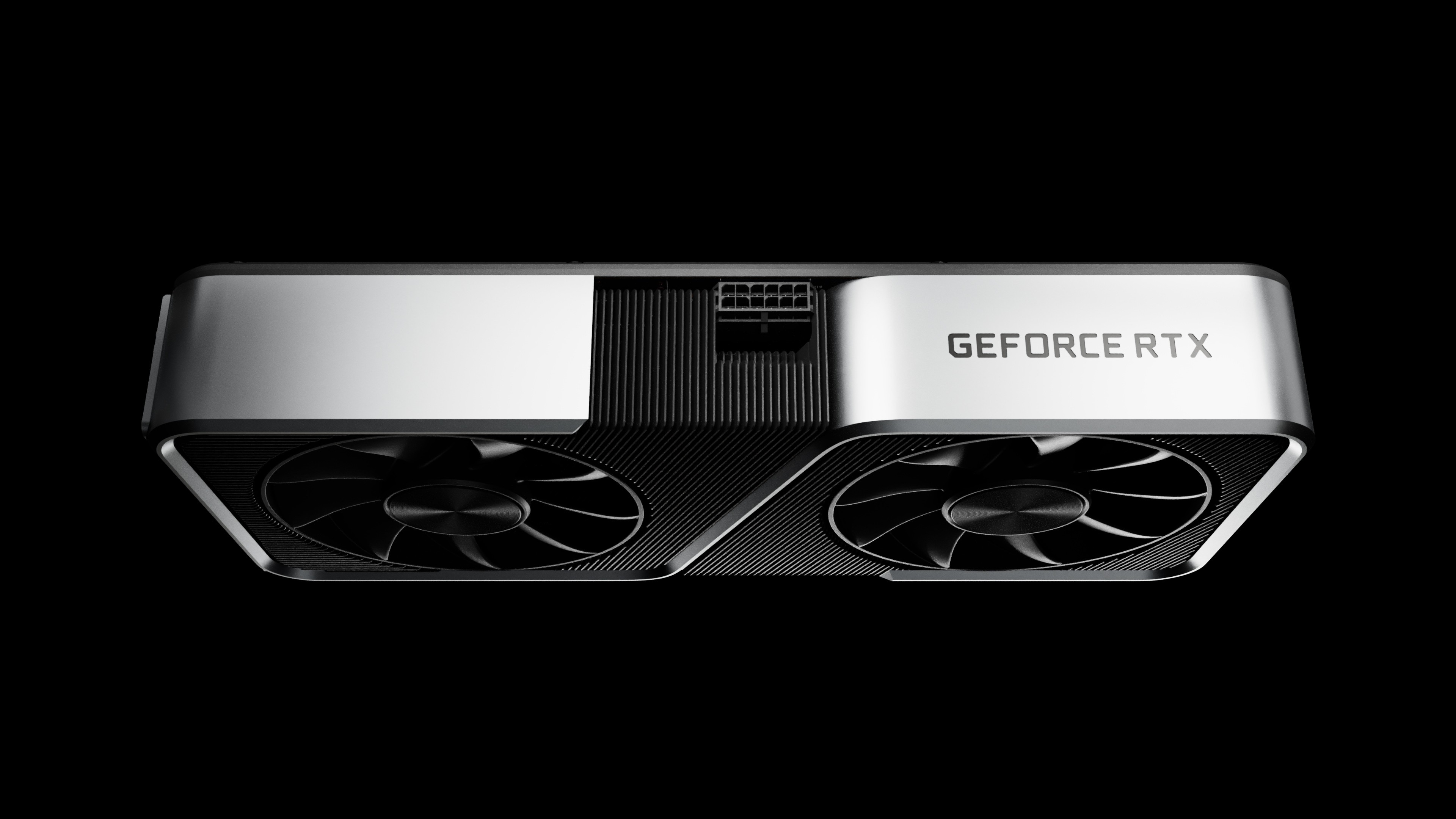

GeForce RTX 3060 Ti
GeForce 30
AmpereGA1048 nm
Memory8 GB GDDR6
Boost clock1,665 MHz
Board power200W
As an Amazon Associate we earn from qualifying purchases
Release context
GeForce RTX 3060 Ti at a glance
GeForce RTX 3060 Ti is a 2020 graphics processor from the GeForce 30 family. Its catalog specifications include the Ampere architecture, 8 GB of GDDR6, a boost clock up to 1,665 MHz, a 200W board power rating.
Compare with Another GPU
Select a graphics card to see a side-by-side comparison with the GeForce RTX 3060 Ti.
Boost Clock
1,665 MHz
VRAM
8 GB
TDP
200W
Memory Bandwidth
448 GB/s
Shading Units
4864
Memory Bus
256 bit
Performance Specs
Base Clock
1,410 MHzBoost Clock
1,665 MHzShading Units / Stream Processors
4864Texture Units
152Render Output Units
80Memory Specs
VRAM Size
8 GBMemory Type
GDDR6Memory Bus Width
256 bitMemory Clock
1,750 MHzMemory Bandwidth
448 GB/sArchitecture & Manufacturing
Architecture
AmpereCode Name
GA104Process Node
8 nmDie Size
392 mm²Transistors
17,400MInterface & Power
Bus Interface
PCIe 4.0 x16TDP (Thermal Design Power)
200WDisplay & Dimensions
Pricing & Info
Launch Date
December 1, 2020Generation
GeForce 30API Support
DirectX
DirectX 12OpenGL
OpenGL 4.6Vulkan
Vulkan 1.4CUDA
CUDA 8.6OpenCL
OpenCL 3 Suggested matchups
