NVIDIA2022

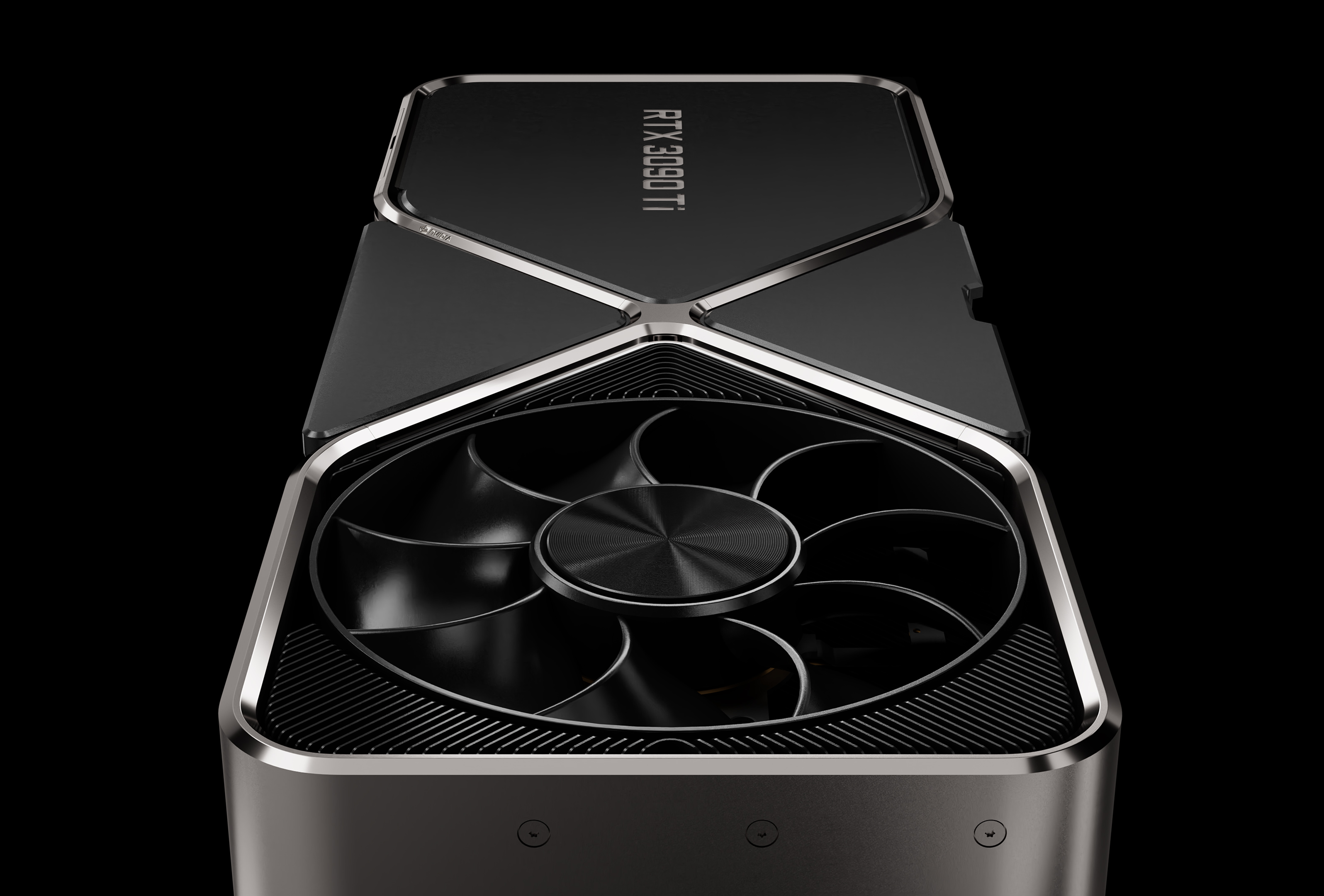

GeForce RTX 3090 Ti
GeForce 30
AmpereGA1028 nm
Memory24 GB GDDR6X
Boost clock1,860 MHz
Board power450W
As an Amazon Associate we earn from qualifying purchases
Release context
GeForce RTX 3090 Ti at a glance
GeForce RTX 3090 Ti is a 2022 graphics processor from the GeForce 30 family. Its catalog specifications include the Ampere architecture, 24 GB of GDDR6X, a boost clock up to 1,860 MHz, a 450W board power rating.
Compare with Another GPU
Select a graphics card to see a side-by-side comparison with the GeForce RTX 3090 Ti.
Boost Clock
1,860 MHz
VRAM
24 GB
TDP
450W
Memory Bandwidth
1,010 GB/s
Shading Units
10752
Memory Bus
384 bit
Performance Specs
Base Clock
1,560 MHzBoost Clock
1,860 MHzShading Units / Stream Processors
10752Texture Units
336Render Output Units
112Memory Specs
VRAM Size
24 GBMemory Type
GDDR6XMemory Bus Width
384 bitMemory Clock
1,313 MHzMemory Bandwidth
1,010 GB/sArchitecture & Manufacturing
Architecture
AmpereCode Name
GA102Process Node
8 nmDie Size
628 mm²Transistors
28,300MInterface & Power
Bus Interface
PCIe 4.0 x16TDP (Thermal Design Power)
450WDisplay & Dimensions
Pricing & Info
Launch Date
January 27, 2022Generation
GeForce 30API Support
DirectX
DirectX 12OpenGL
OpenGL 4.6Vulkan
Vulkan 1.4CUDA
CUDA 8.6OpenCL
OpenCL 3 Suggested matchups
