NVIDIA2022

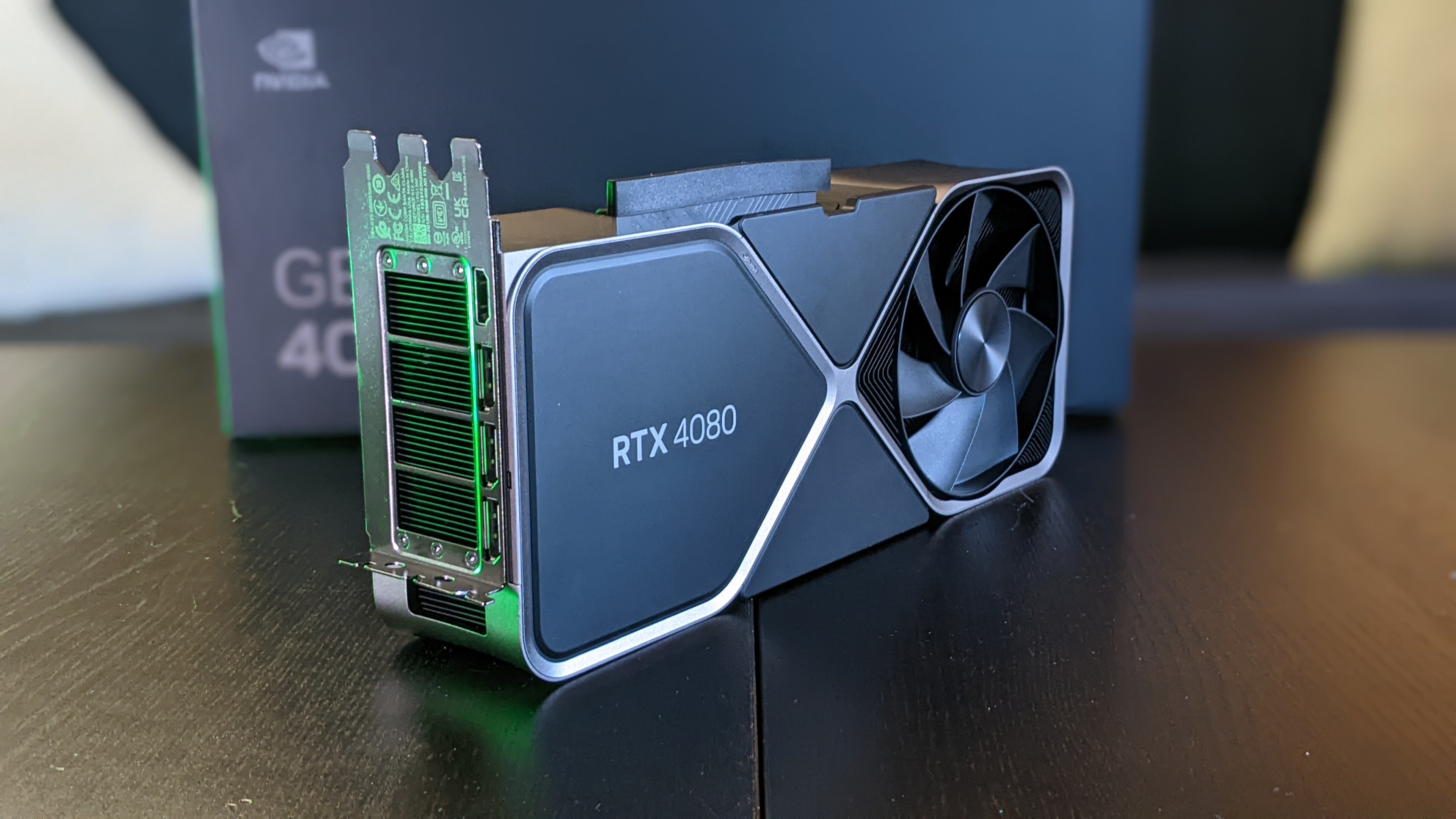

GeForce RTX 4080
GeForce 40
Ada LovelaceAD1035 nm
Memory16 GB GDDR6X
Boost clock2,505 MHz
Board power320W
As an Amazon Associate we earn from qualifying purchases
Release context
GeForce RTX 4080 at a glance
GeForce RTX 4080 is a 2022 graphics processor from the GeForce 40 family. Its catalog specifications include the Ada Lovelace architecture, 16 GB of GDDR6X, a boost clock up to 2,505 MHz, a 320W board power rating.
Compare with Another GPU
Select a graphics card to see a side-by-side comparison with the GeForce RTX 4080.
Boost Clock
2,505 MHz
VRAM
16 GB
TDP
320W
Memory Bandwidth
716.8 GB/s
Shading Units
9728
Memory Bus
256 bit
Performance Specs
Base Clock
2,205 MHzBoost Clock
2,505 MHzShading Units / Stream Processors
9728Texture Units
304Render Output Units
112Memory Specs
VRAM Size
16 GBMemory Type
GDDR6XMemory Bus Width
256 bitMemory Clock
1,400 MHzMemory Bandwidth
716.8 GB/sArchitecture & Manufacturing
Architecture
Ada LovelaceCode Name
AD103Process Node
5 nmDie Size
379 mm²Transistors
45,900MInterface & Power
Bus Interface
PCIe 4.0 x16TDP (Thermal Design Power)
320WDisplay & Dimensions
Pricing & Info
Launch Date
September 20, 2022Generation
GeForce 40API Support
DirectX
DirectX 12OpenGL
OpenGL 4.6Vulkan
Vulkan 1.4CUDA
CUDA 8.9OpenCL
OpenCL 3 Suggested matchups
